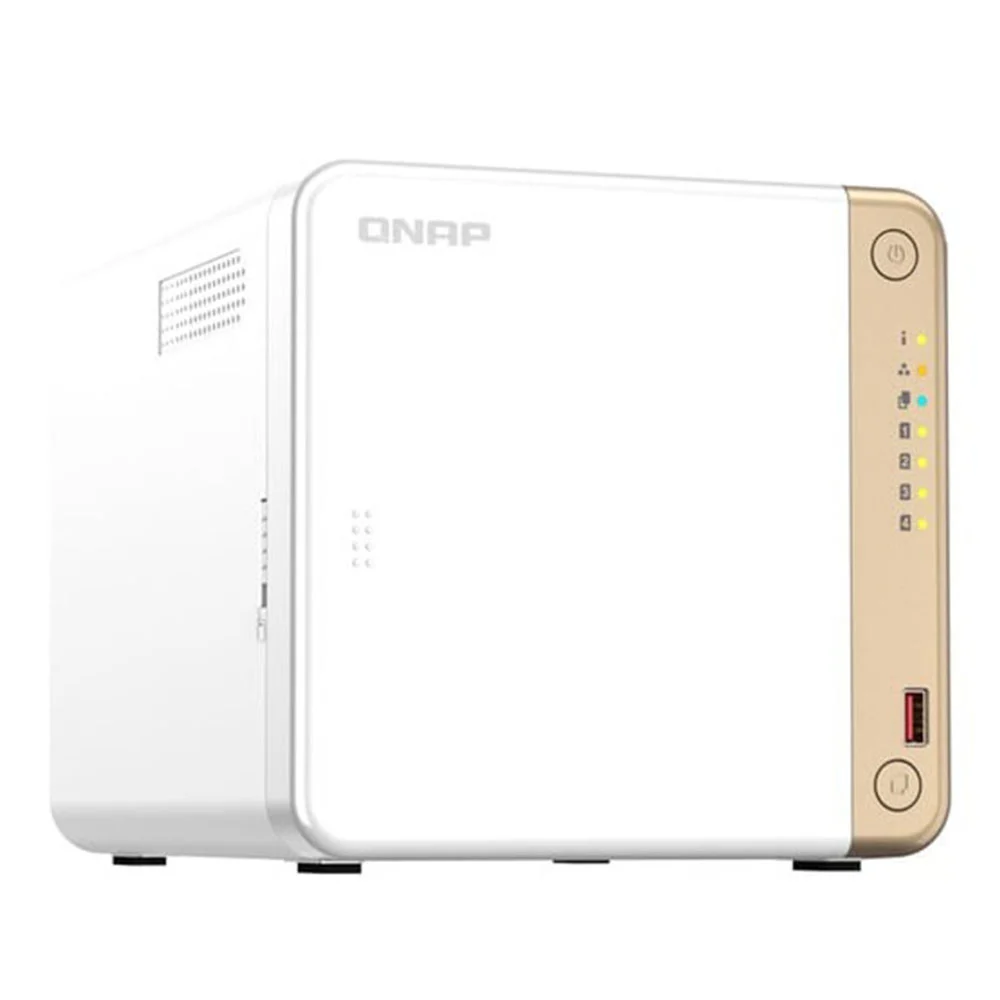

TS-462-4G

• Intel® Celeron® N4505 2-core/2-thread processor 2.0 Ghz , burst up to 2.9 GHz

• QTS

• 4 GB RAM

• Drive Bay : 4x 3.5-inch SATA 6Gb/s
• M.2 Slot : 2x M.2 2280 PCIe Gen 3 x1
• Drive Compatibility : 2.5-inch , 3.5-inch SATA hard disk drives

• 4 Bay
• Maximum Pool size : 308 TB
• Maximum number of storage pool : 128
• Maximum volume size : 250 TB
• Maximum number of volume : 128
• Maximum shared folder size : 250 TB

N/A

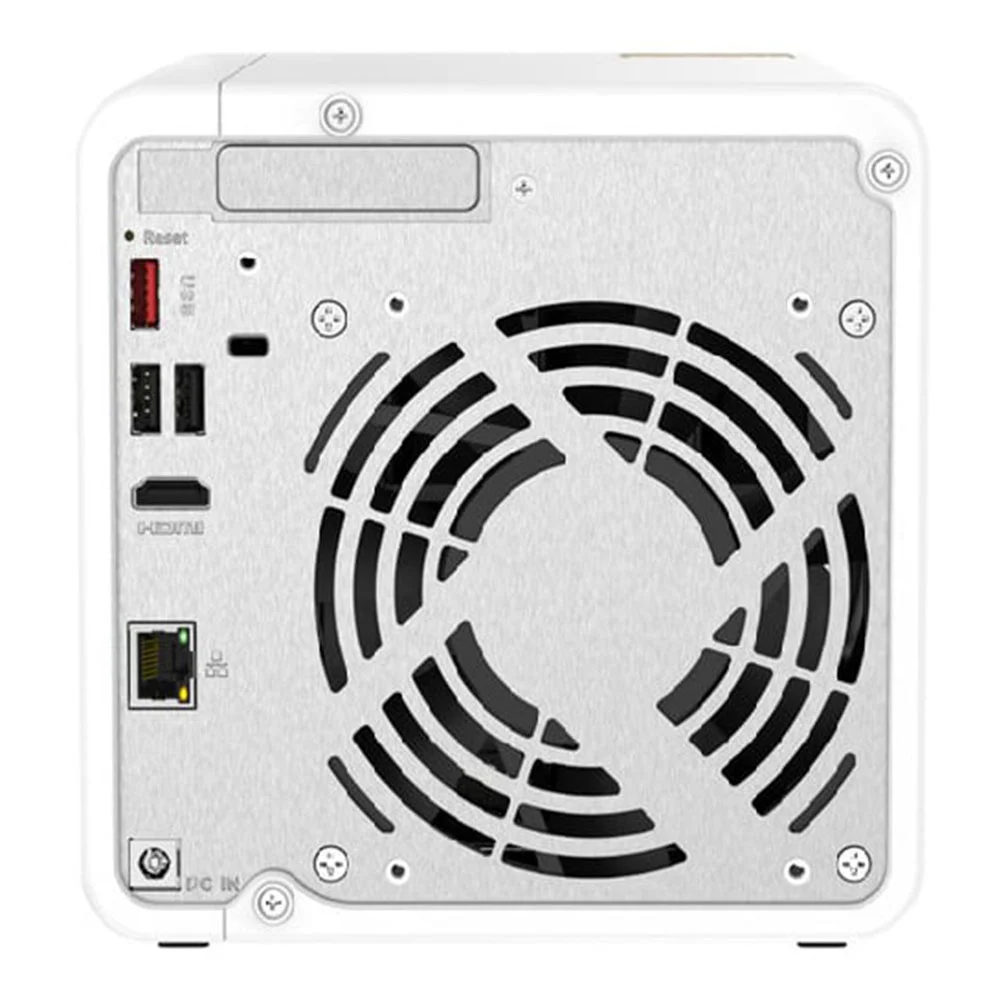

• Power/Status, LAN, USB, HDD1-4

• 2x USB 2.0 port
• 2x USB 3.2 Gen 2 (10Gbps) Port

• 1x (2.5G/1G/100M/10M)

• 2x SODIMM DDR4

• Power, USB copy, Reset

NONE

• 1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
• 2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
• 3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
• 4. 2-bay: JBOD, Single, RAID 0, 1

N/A

• Apple Mac OS 10.10 or later
• Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
• IBM AIX 7, Solaris 10 or later UNIX
• Microsoft Windows 7, 8, 10 and 11
• Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022

• [Qsync] Management Mode
• [QuMagie] AI-assisted photo management
• [QVR Center] Log management

• QuFTP
• FTP, SFTP and TFTP protocols
• FTP over SSL/TLS (explicit FTPS)
• FXP support

• File sharing across Windows, Mac, and Linux/UNIX
• Microsoft networking (CIFS/SMB)
• Apple networking (AFP)
• NFS version 3/4 services

N/A

N/A

• 1x 120mm, 12VDC

• 90W ,adapter, 100-240V

• Power Consumption: HDD Sleep Mode : 20.33 W
• Power Consumption: Operating Mode, Typical : 32.4 W

• Operating Temperature : 0 - 40 °C (32°F - 104°F)
• Storage Temperature : -20 - 70°C (-4°F - 158°F)
• Relative Humidity : 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)

N/A

• 1x TS-462
• 1x AC Adapter
• 1x Ethernet cable
• 1x Power cord
• 16x Flat head screw (for 3.5" HDD)
• 12x Flat head screw (for 2.5" HDD)
